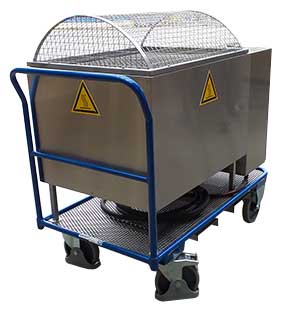

Mobile Load Resistor - 46kW - 3x1000V

Mobile load resistor for test of submersible pumps in any size

Features

SAN mobile load resistor 46kW - 3x1000V, divided into groups, consisting of a double stainless steel duct, mounted with resistance elements in stainless steel, mounted in powder painted cabinet with load switches mounted on the front for outer operating. The resistor is built on a trailer on wheels with brake and lifting unit for truck. The resistor is designed for natural convection.

5m connection cable is mounted in the cabinet, coiled on cable reel on the side of the cabinet. Protection grating mounted on the top above air outlet.

Technical data

Example:‌

Power

46kW

Groups

3x10kW - 2x5kW - 1x3kW - 1x2kW - 1x1kW

Voltage

3x1000V AC

Dimensions

H1300xW800xL1300mm
