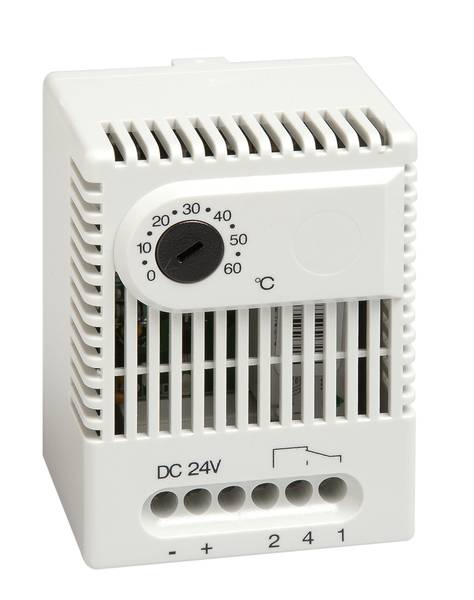

Type ETL 011 - electronic thermostat used for controlling heating and cooling equipment, filter fans or signal devices through the relay SM 010 or a similar device.
The thermostat registers the surrounding air temperature and can switch a signal current via an internal relay with a potential free change-over contact. The LED integrated in the adjustment knob shows the closed status of the contact 1-2. When temperature is rising contact 1-2 opens and the LED turns off. In currentless state (no supply voltage) contact 1-2 opens.
