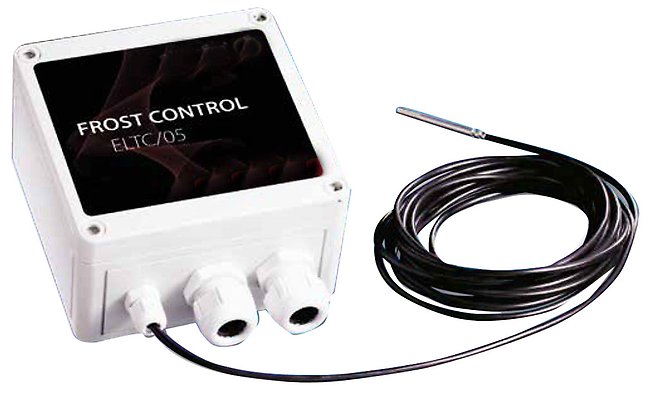

Electronic Frost Protection Thermostat

Type ELTC 05 - electronic temperature controller designed for use as an ambient thermostat and surface thermostat with remote sensor. Cable glands and terminals are provided for power input. The unit is supplied in a weather proof plastic enclosure for wall mounting with a grey cover

Description

The controller should be protected from direct sunlight when used outdoors. In case of use as ambient temperature controller, the sensor cable is shortened to allow fastening of the sensor sleeve within the M12 gland. The sleeve should project by approx. 15mm.

Advantages

• Weather proof
• Fixed switching set point

Applications

• Heat tracing for frost protection
• Can be used as ambient and surface thermostat
• Suitable for resistance heating lines and selfregulating heating cables.
