Load Resistor - 1.5MW - 3x690V

Mobile load resistor for test of wind turbines

Load resistor

Features

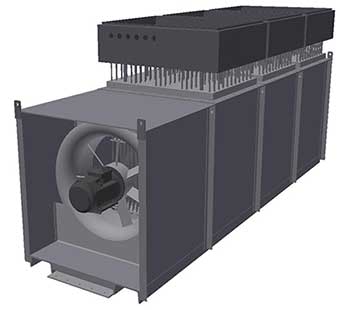

SAN load resistor, load resistor 1.5MW - 3x690V, divided into 24 groups (group 1-2 690V / group 3-24 3x690V. Consisting of stainless steel frame covered by 2mm stainless steel plate, mounted with 252 off heating elements Ø10,2mm, equipped with terminal box with built-in temperature limiters type EGO, motor protection and ventilator.

Load resistor mounted with lifting brackets for transport and U-rails in the bottom in case of truck lifting together with grating at the outlet end. Terminal boxes are situated at the top of the load resistor, and raised 195mm due to heat transmission.

Technical data

Example:‌

Specific load

3,15W/cm²


Dimensions heating elements


Ø10,2 x 5950 x 300mm


Dimension duct

HxWxL 1000x1000x3400mm


Materials heating elements


AISI 316L

Material duct

AISI 304

Material terminal box

AISI 304

Fan

3kW - 3x400V, 50Hz, 4-pole with built-in thermo switch

Air volume

14500m³/h, at approx. 460 Pa cst

Air velocity

7.4m/sec

Number of terminal boxes

3 off

Protection class, terminal boxes

IP65

Temperature limiter

3 off, adjustable 100-700°C, 1-pole 400V - 10A
