Ex Temperature Limiter

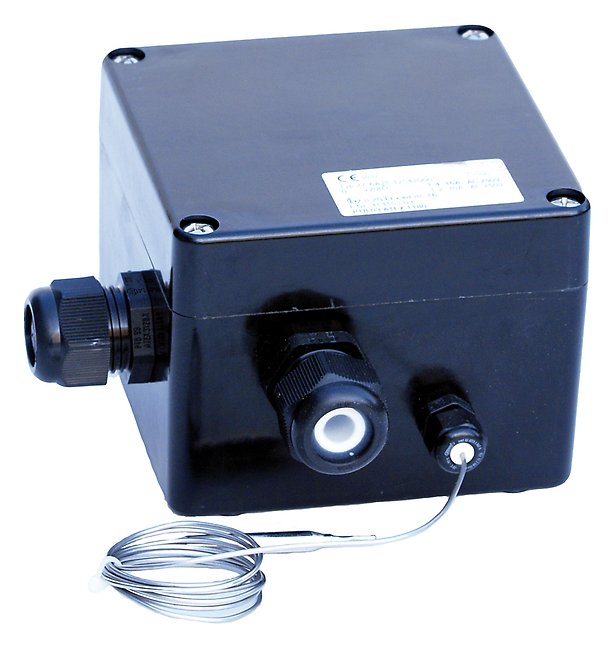

Type BTB/BSTW - 16A EX temperature monitor BSTW / temperature limiter BTB/BSTB change-over controller housed in Ex e certified polyester enclosure. Heaters, fans, motors and other equipment are energised and de-energised by means of this thermostat when specific temperature ranges are exceeded.

Features

  • 16A switching capacity
  • Pre-set limit point for BSTB
  • Suitable for use in Zone 1 + Zone 2 areas
  • Temperature setting directly in Zone 1
  • Zone 21 and 22 areas possible
  • Resettable lockout on the device
  • Direct heating circuit connection via sheathed cable/cold lead
  • Temperature ranges from -20°C to +500°C possible

Description

These devices can also be used to control the temperature in air or on various surfaces. The fail-safe temperature limiter BTB and the fail-safe temperature limiter BSTB are produced with restart lockout, resetting (reopening) is only possible at the device.

Download document

01096 - BTB-BSTW

SAN BTB Temperature limiter
