Preheating

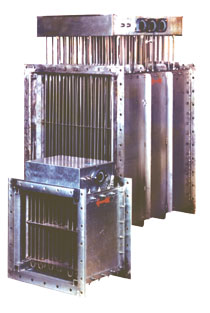

Electrical Heaters for preheating of emission gasses in power stations

SAN Process Heater

The electrical heaters are manufactured in acid-proof stainless steel. They are equipped with heating elements type BC of the same material. The heating elements are mounted on detachable flange plates with IP55 cable duct, which are raised 250mm above the heat conductor.

This type of electrical heater is for applications with variating pressure and temperature. A thermo couple is mounted directly on the heating elements as a safety.

Technical data

Example:‌

Output

368kW

88kW

Voltage

3x380V

3x380V

Volume of gas

13,300kg/h

12,900kg/h

Operating temp.

350°C

20°C

Pressure range

6500Pa

8500Pa

Casing

IP55

IP34

Composition

AISI 316

Galvanized steel plate
